ProFlex is the New ROI Standard

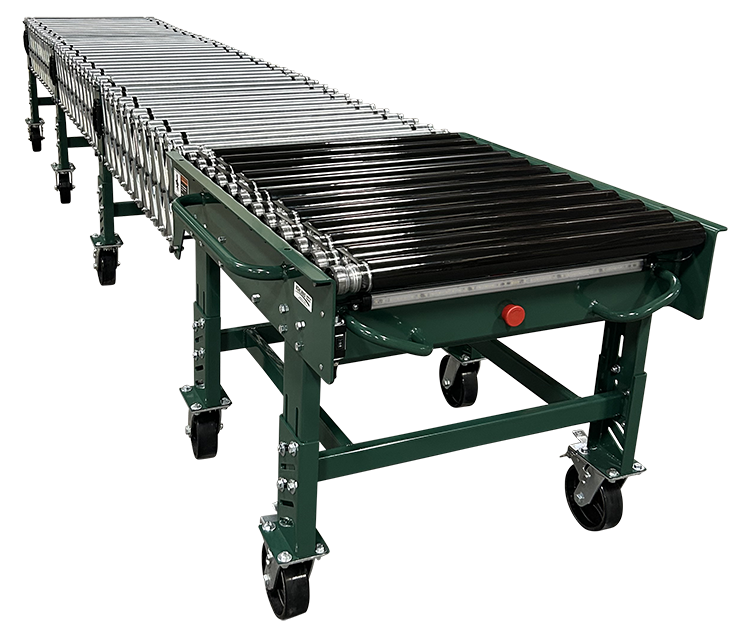

The ProFlex Power Conveyor is an extendable, flexible solution engineered for today’s fast-moving operations. It arrives fully assembled, runs on standard 120V power and includes integrated controls with multiple operating modes — giving you plug-and-play performance right out of the box.
Advanced Flexible Conveyance Technology
Experience smarter material handling with lower energy use. ProFlex combines next-generation motors, enhanced power transmission and intelligent controls to deliver optimized performance with unmatched efficiency.
Superior Durability
Built tough for the most demanding environments, ProFlex offers a longer service life and ultra-low maintenance costs. The result: a higher return on investment.
Simple Maintenance
Keep downtime to a minimum with:
- Quick-change belts and rollers
- Easy-access motors and controls – Maintenance is streamlined so your team can stay focused on production.
User-Friendly Operation
Smart design means less training and fewer headaches. ProFlex features intuitive controls and a straightforward interface for smooth, hassle-free operation.
Scalable Solutions
Whether you need a small, localized system or a large-scale integrated solution, ProFlex has adaptable configurations that meet the specific needs of your operation. Easily expand or modify as your requirements evolve.
Built for a Variety of Conveyance Operations
High-performance for 3rd-party logistics, manufacturing, e-commerce, distribution and retail operations. Perfect for truck loading/unloading and any operation that demands a flexible, mobile powered conveyor system.
Modes of Operation
Zero Pressure Accumulation: Each zone has a diffused photo-eye sensor and UL-listed 24V DC UniDrive brushless motor. Zones operate only when the downstream section is unoccupied, using advanced control features for smooth accumulation and efficient package flow, while reducing energy consumption and lowering maintenance costs. Optional Slug Mode operation (transportation/ZPA hybrid) increases package throughput while maintaining accumulation characteristics. Accumulation mode conveys in one direction. In reverse, the conveyor operates in Transportation mode only.
Transportation: The conveyor continuously moves packages without entering sleep mode, ensuring constant flow for high-throughput applications. Unlike Zero Pressure Accumulation, zones remain active even if downstream sections are unoccupied, prioritizing uninterrupted movement. Reverse is optional. Powered by UL-listed 24V DC UniDrive brushless motors.
Options
Advanced Controls: ProFlex control cards support advanced programming features that allow multiple modes of operation, real-time monitoring, remote management and seamless integration with other equipment for fully customizable and optimized conveyor performance
Safety Circuit: Enables integration with other equipment and supports multiple E-stops for enhanced operator safety and system control.
Impact Cart: Features powered polyurethane-sleeved rollers, a rigid frame, ergonomic pull handles and an integrated light kit. The sleeved rollers enhance durability and performance, while the light illuminates the inside of a trailer.
Side Guards: Factory-installed skatewheel side guards protect packages without restricting product flow.
| | |
|---|---|
| Available Widths: | 24-in, 30-in & 36-in |
| 3-in Centers Length: | 20-ft, 40-ft & 60-ft Fully Extended. Collapsed Length Based on Roller Diameter and Centers (See Reference Chart Below) |
| 5-in Centers Length: | 24-ft, 48-ft & 72-ft Fully Extended. Collapsed Length Based on Roller Diameter and Centers (See Reference Chart Below) |
| Roller Diameter: | 1.5" or 1.9" |
| Roller Casters: | 6" Swivel Casters with Brakes |
| Power Requirements: | 120V Single-Phase with NEMA L5-30 connection |
| Motor Control: | Zone Logix Pro 2.0 for Intelligent Zone Control |
| Belts: | Blue 85 High-Tension O-ring Belts (Optional: Eagle XLD belts) |
| Belt Replacement: | Quick Change Design for Fast Minimal Skill Belt Replacement |
| Reference Chart | ||||
|---|---|---|---|---|
| Roller Diameter | Roller C/C | Zone Length | Rollers Per Zones | Compression Ratio |
| 1.5" | 3" | 38.5" | 13 | 1.7:1 |
| 1.5" | 5" | 42.5" | 9 | 2.3:1 |
| 1.5" | 3" | 38.5" | 13 | 1.6:1 |
| 1.9" | 5" | 42.5" | 9 | 2.1:1 |
System Integration & Customization
Integration Kit:
The integration kit enables two ProFlex units to be linked together, featuring a handshake controller for easy plug-and-play installation and seamless communication between both conveyors. The kit can also be used to connect to existing customer infrastructure, including conveyors, tuggers, robotics and other material handling equipment, providing flexible and integrated operation.
Customization:

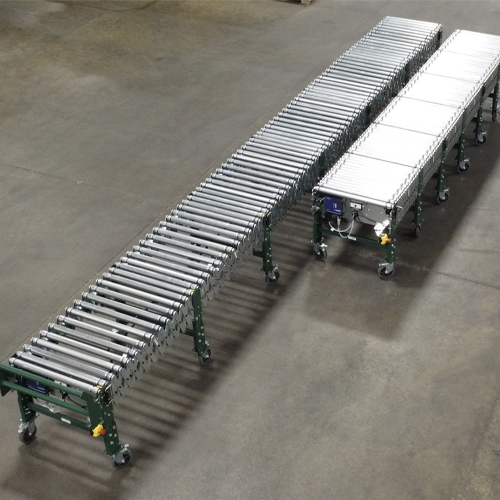

ProFlex conveyors are available in standard lengths of approximately 20’, 40’, and 60’ for 3” roller centers, and 24’, 48’, and 72’ for 5” roller centers. For additional flexibility, units can be built to custom lengths, leg heights, roller centers, and with powder-coated legs in industry-standard colors, alternative power supply inputs and advanced control configurations to meet specific operational requirements.
Optional Heavy-Duty,
High-Impact Cart
Impact Cart Has Built-in Lighting &
Polyurethane Sleeved Rollers

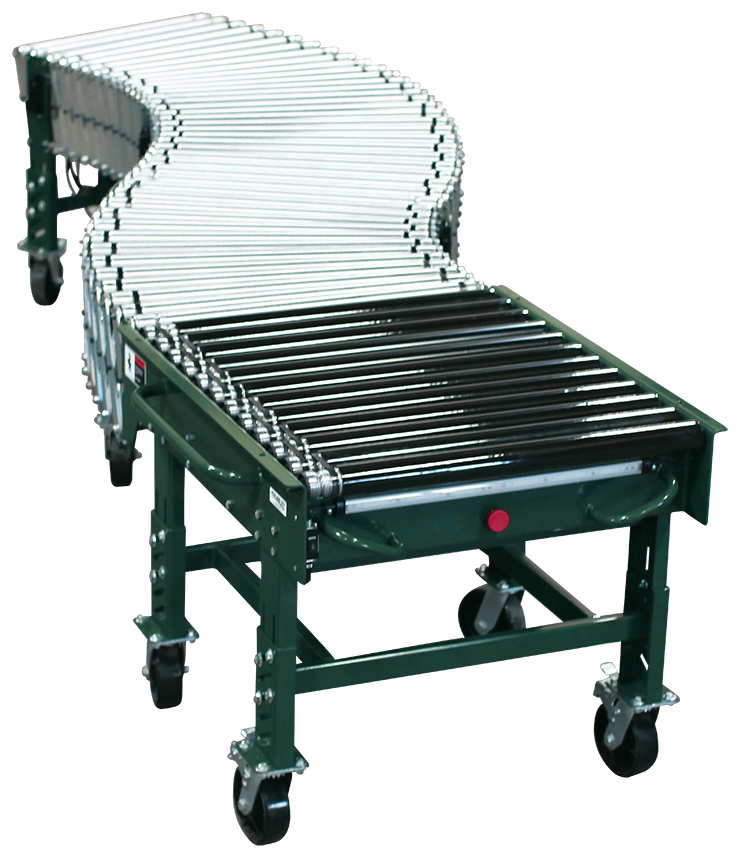

Powered, Flexible &
Extendable Conveyance
Experience industry-leading performance and ultra-low maintenance with Ashland’s ProFlex Power Conveyor. This game-changing conveyor features unparalleled durability and reliability for this class of products. The frame is engineered with 7-gauge zinc-plated steel, robust welded joints and high-carbon steel connections, which support advanced operation features like maintenance-free brushless motors and a snag-free rail system for smooth, efficient operation. Users experience quick, simple belt and roller changes along with easy access to plug-and-play components that significantly reduce downtime and labor costs.
Flexible, Powered Conveyance

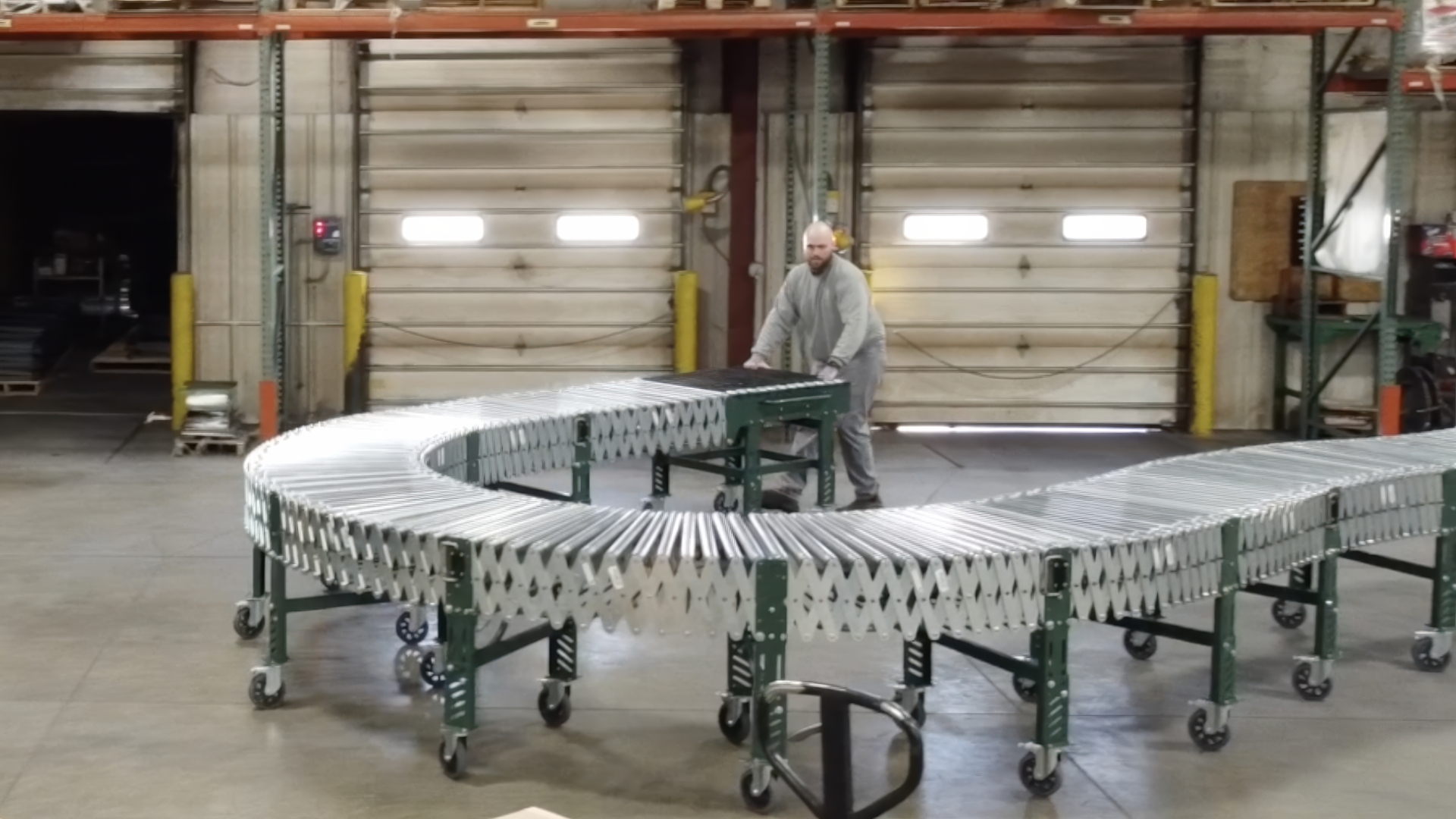

Extendable, Easy to Deploy
Zero Pressure Accumulation Technology
Designed & Built For Excellent ROI
Rollers
ProFlex conveyors feature 16-gauge galvanized steel rollers with precision bearings for reliable, smooth operation. The 1.5" diameter rollers, offered on 24" and 30" wide models, provide maximum compaction, while the 1.9" diameter rollers on 30" and 36" models deliver superior strength and durability.
Roller Centers
ProFlex is available in 3" or 5" roller spacing, allowing selection based on conveyed package size and application.

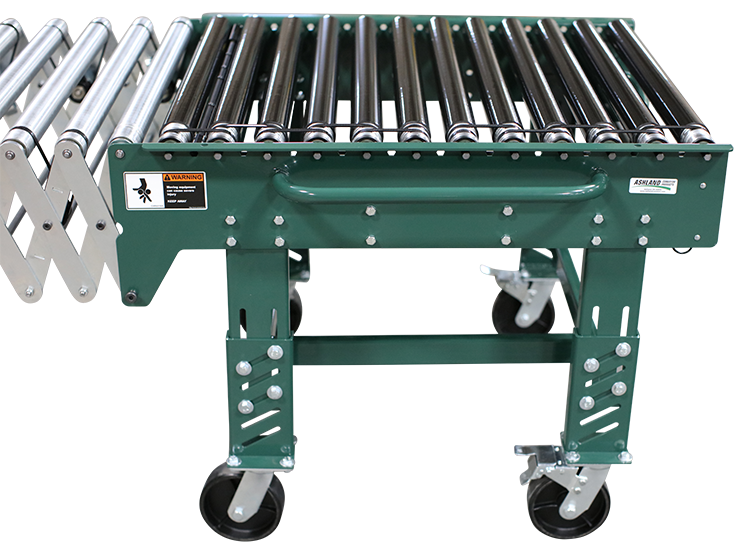

Leg Sets
Robust welded legs have 6" swivel lock and brake casters for easy maneuverability, low maintenance and simple replacement. Standard-pattern plate mounting provides exceptional strength and stability, while allowing for alternate caster styles and sizes to suit different applications.

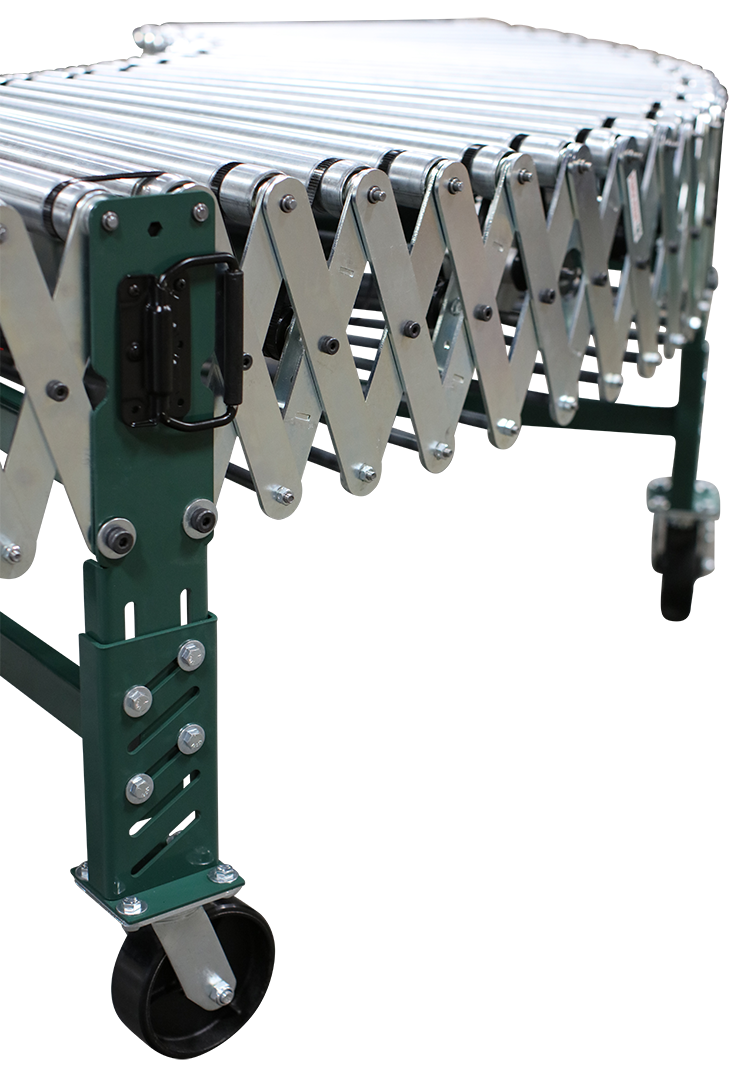

Fold Flat Handles
Robust fold-flat handles on every other leg set make ProFlex easy to move and safer to work around. For maximum maneuverability, install handles on every leg set (optional).
Frame Design
ProFlex uses a patent-pending design that uses 7-gauge zinc-plated side links to provide simple, efficient O-ring belt and roller changes.
This unique, robust design not only reduces downtime and maintenance—lowering total cost of ownership—but also allows team members with minimal training to perform belt changes quickly and safely.
