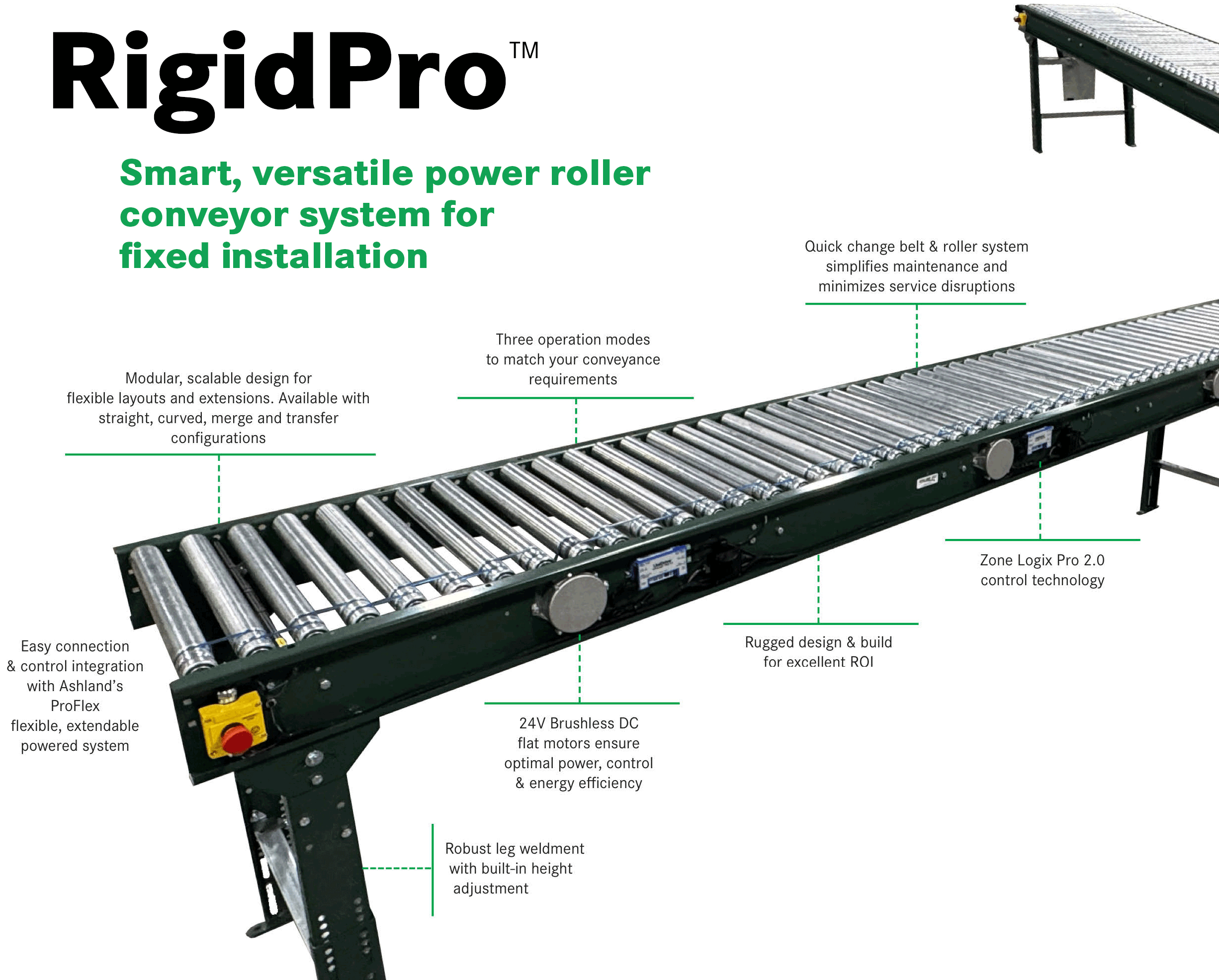

RigidPro™ Live Roller Power Conveyor System
RigidPro is a smart, versatile live power roller conveyance system that allows you to create a customized material-handling set-up that meets your operational requirements now and in the future. RigidPro Systems are built to Ashland’s high-quality standards, providing users with an outstanding ROI and ultra-low maintenance costs. RigidPro customers also enjoy outstanding engineering support, customer service and on-site commissioning services.
Modes of Operation
Zero Pressure Accumulation – Each zone has a diffused photo-eye sensor and UL-listed 24V DC UniDrive brushless motor. Zones operate only when the downstream section is unoccupied, using advanced control features for smooth accumulation and efficient package flow, while reducing energy consumption and lowering maintenance costs.
Slug – optional – (transportation/ZPA hybrid) increases package throughput while maintaining accumulation characteristics. In reverse, the conveyor operates in Transportation Mode only.
Transportation – The conveyor continuously moves packages without entering sleep mode, ensuring constant flow for high-throughput applications. Unlike Zero Pressure Accumulation, zones remain active even if downstream sections are unoccupied, prioritizing uninterrupted movement. Reverse is optional.
-Features
- Modular sections for flexible layouts and extensions. Available with straight, curved, merge and transfer configurations
- Energy efficient 24V brushless low-profile UL-listed DC motors
- Three modes of operation to match your operating requirements
- Easy belt & roller replacement: Quick- change design minimizes downtime
- Minimal maintenance and energy efficient – built for outstanding ROI
Specifications & Options
Roller Widths (In): 18, 24, 30 & 36
Module Lengths (Ft): 6 & 12 (other options available)
Curved Modules: 45° & 90°
Roller Diameter (In): 1.9
Accumulation Zone Lengths (In): 24, 36 & 48
Input Voltage: 115/230 single phase & 230/460 three phase available
Belts: Blue 85 high-tension O-ring or optional Eagle XLD
Guards: Rails set low (guarding incorporated into frame) or bolt-on guarding to top of frame
Advanced Controls: RigidPro control cards support advanced programming features that allow multiple modes of operation, real-time monitoring, remote management and seamless integration with other equipment for fully customizable and optimized conveyor performance
Roller Options: Woodsage QuietPro (reduced noise), Polysleeved or Vinyl
Simple Maintenance: Keep downtime to a minimum with:
- Quick-change belts and rollers
- Easy-access motors and controls
- Modular design for easy extensions or upgrades
Connect & Integrate with ProFlex™
For flexible, extendable powered trailer load or unload, connect RigidPro with an Ashland ProFlex system. ProFlex’s optional impact cart includes an adjustable, bright LED light to help illuminate the trailer interior.
Scalable Solution
Whether you need a small, localized system or a large-scale integrated solution, RigidPro has adaptable configurations that meet the specific needs of your operation. Easily expand or modify as your requirements evolve.
Superior Durability
Built tough for the most demanding environments, RigidPro offers a longer service life and ultra-low maintenance costs for outstanding ROI.
Ideal For...
RigidPro is designed for 3rd-party logistics, manufacturing, e-commerce, distribution and retail operations. It's perfect for any operation that requires a dependable, low-maintenance powered roller conveyor system.
Short Lead Times
Ashland is highly experienced in manufacturing conveyor systems. We focus on supporting our customers with short lead times and outstanding product support.
Outstanding Engineering Support
Our highly experienced engineering team helps you select and configure your RigidPro system to match your operation's specific conveyance requirements. Made in USA!
